Determining the correct hardware for your Dometic awning

Need to replace your Dometic awning hardware?
Uncertain if you need Ultra Short, Short / Standard or Tall?

Check out this handy guide below.

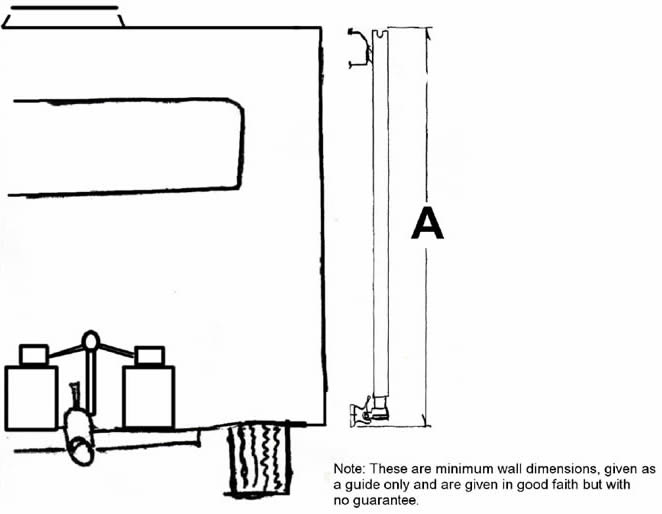

Minimum wall height (A) needed to fit each hardware type:

Note: Left/right table scroll in mobile view

8300 / 8500 / 8700 AWNINGS Minimum Wall Height
Short / Standard Arms *

1620mm

Tall Arms

1925mm

Ultra Short Arms

1475mm


* Short = 8300/8500, Standard = 8700

Minimum wall height (A) needed to fit each hardware type

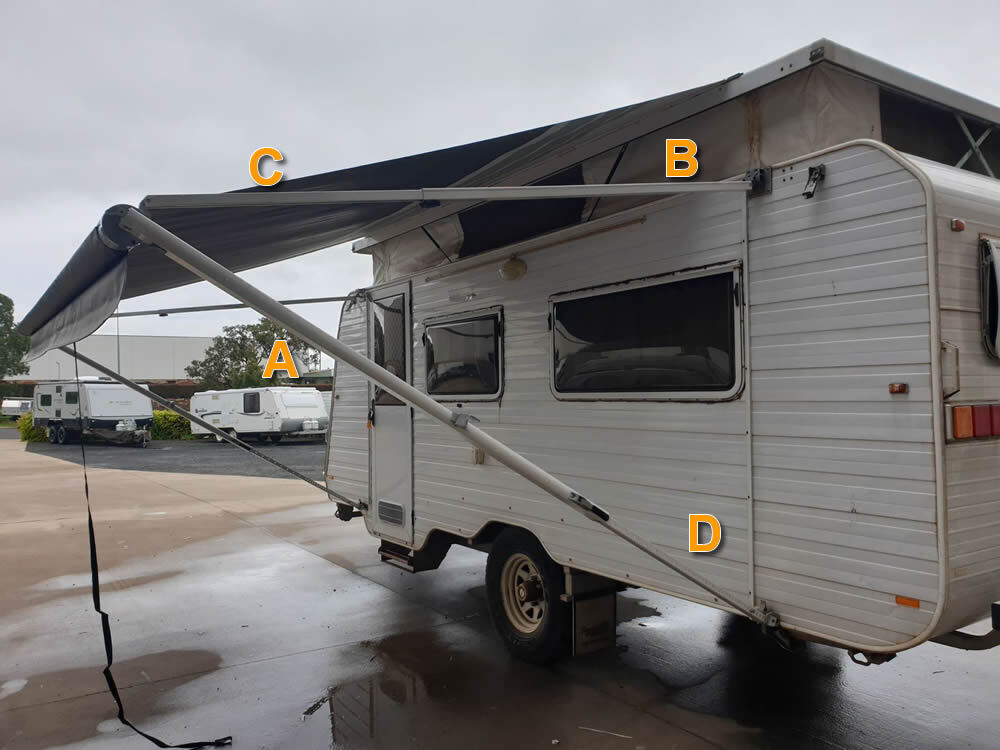

Hardware Parts Identification List (see A,B,C,D below):*

Note: Left/right table scroll in mobile view

8300 / 8500 / 8700 AWNINGS A
Main Rafter
B
Outer Rafter
C
Inner Rafter
D
Adjustable Leg
Short / Standard Arms* 1550mm 1372mm 1130mm 1455mm
Tall Arms 1855mm 1678mm 826mm 1455mm
Ultra Short Arms 1385mm 1244mm 1130mm 1288mm
Short = 8300/8500, Standard = 8700

** These dimensions are given as a guide only and are given in good faith but with no guarantee.
Specifications may change without notice.

Hardware Parts Identification
